Description
Key Features
- LiFePO₄ Chemistry: Safer (no thermal runaway/fire risk), thermally stable, eco-friendly, and durable in tropical/humid conditions.
- Smart BMS: Built-in Battery Management System with overcharge/over-discharge, overcurrent, short-circuit, temperature protection; includes breaker/fuse for added safety.
- High Cycle Life: ≥6000 cycles to 80% capacity (at 25°C, typical 80–95% DoD)—often marketed as 6000+ cycles with 10–15 year lifespan.

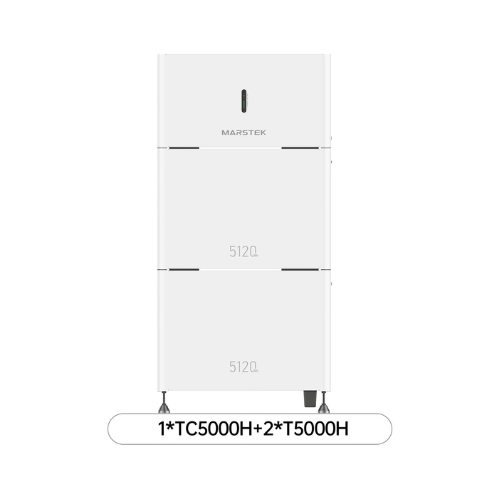

- Expandable: Modular design; stack/parallel compatible (e.g., up to 15.36kWh in some series like M5000).
- Monitoring: Some variants support WiFi/app for remote status (voltage, SOC, health).
- Installation: Wall-mounted or floor-mounted; plug-and-play in kits.
- Other: Low self-discharge, fast charging, wide temp range; UN38.3 certified.
Technical Specifications Marstek 5.12kWh 48V LiFePO₄ Models
| Specification | Details |
|---|---|
| Model | Marstek USA / M5000 series / Venus-E equivalent |
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V (48V system nominal) |
| Operating Voltage Range | ~44.8V – 57.6V |
| Capacity | 100Ah (nominal) |
| Energy Capacity | 5.12kWh (5120Wh nominal; ~4.1–4.86kWh usable at 80–95% DoD) |
| Depth of Discharge (DoD) | ≥80–95% (recommended) |
| Cycle Life | ≥6000 cycles @ 80% capacity (at 25°C) |
| Max Charge/Discharge Current | ≤100–200A (continuous; peak varies) |
| Max Charge/Discharge Power | ≤5–10kW (depending on BMS limits) |
| Communication | RS485/CAN (WiFi optional/app monitoring) |
| Scalability | Parallel/expandable (e.g., up to 15.36kWh) |
| Installation | Wall/floor-mounted |
| Protection Level | IP-rated (dust/moisture resistant; indoor/general) |
| Operating Temperature | Wide range (suitable for coastal Kenya) |
| Warranty | 5–10 years (seller-dependent) |
