Description
Key Features
- Hybrid Operation: Prioritizes solar > battery > grid/generator; seamless UPS switchover for uninterrupted power.
- High-Efficiency MPPT: Built-in MPPT controller maximizes solar harvest (up to 97.6% efficiency in series).
- Pure Sine Wave Output: Clean, stable 220–240V AC power safe for sensitive appliances (fridges, TVs, pumps, lights).
- Lithium Compatible: Supports lead-acid or lithium batteries (with self-adaption to BMS for LiFePO₄ like your Felicity/Inverex models).
- Smart Monitoring: Optional WiFi/stick logger/app for remote status, energy flow, and alerts.
- Parallel Support: Multiple units for higher power (in Nitrox series).
- IP65 Protection: Waterproof/dustproof (in many Nitrox variants) — excellent for coastal outdoor/semi-outdoor installs.
- Generator Connection: Compatible with diesel/petrol gensets as backup.
- Touch Screen Display: Some models include detachable LCD/touchscreen for easy local control.
Technical Specifications (Nitrox 3kW 24V SP-Hybrid Series)
| Specification | Details |
|---|---|

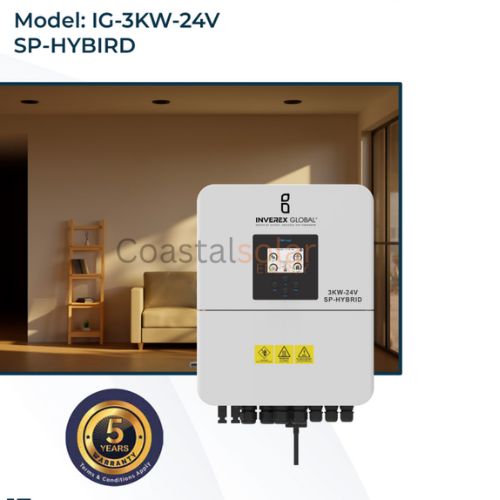

| Model | Nitrox 3kW 24V SP-Hybrid (IG-3KW-24V variant) |
| Rated Power | 3000W (3kW continuous) |
| Surge/Peak Power | Up to 6000W (short bursts) |
| Battery Voltage | 24V DC nominal (range 20–30V) |
| Output Voltage / Waveform | 220–240V AC pure sine wave |
| Max PV Input Power | 3900–15600W (depending on exact variant; high over-paneling support) |
| Max PV Voltage (Voc) | 500V DC |
| MPPT Voltage Range | 150–425V DC (or similar) |
| Max Solar Charge Current | 140A (high-efficiency MPPT) |
| Max AC Charge Current | High (from grid/generator) |
| Max Total Charge Current | Up to 140A+ (combined solar + AC) |
| Efficiency | Max 97.6% |
| Transfer Time | <10–20ms (UPS mode) |
| Battery Types | Lead-acid or Lithium-ion (BMS self-adaption) |
| Operating Temperature | Wide range (suitable for tropical/coastal) |
| IP Rating | IP65 (waterproof/dustproof in Nitrox series) |
| Communication | RS485 / CAN (WiFi/stick logger optional) |
| Warranty | 5 years |
