Description
Key Features
- Hybrid Operation: Solar priority, grid-tie (self-consumption/feed-in where allowed), battery backup, zero-export mode.
- Dual MPPT Trackers: High efficiency (~97.6%) for max PV harvest; supports significant over-paneling.
- IP65 Waterproof: Fully sealed for outdoor/roof/ground installs — excellent for coastal salt/humidity/rain.
- High Charge/Discharge: Up to 135–140A combined (solar + AC), fast battery charging.
- Smart Monitoring: WiFi/stick logger/app for remote status, energy flow, alerts.
- Generator Connection: Programmable port for smart load/generator access.
- Touchscreen Display: Detachable LCD/touchscreen for easy local control.
- Parallel Support: Multiple units for higher power.
- Other: Pure sine wave, high surge endurance, works without batteries in some modes, internal SPD (surge protection).
Technical Specifications
| Specification | Details |
|---|---|

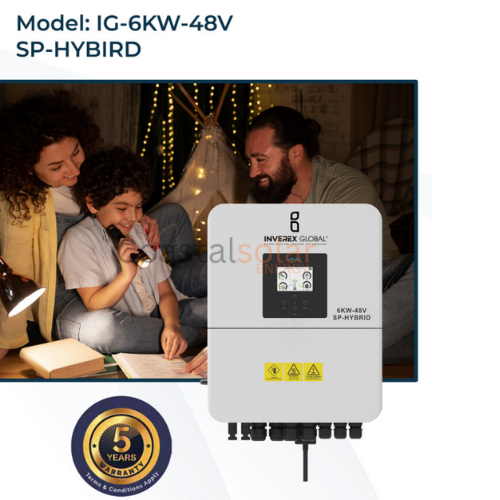

| Model | IG-6KW-48V SP-HYBRID (Nitrox 6kW SP-48V) |
| Rated Power | 6kW / 6kVA continuous |
| Surge/Peak Power | High (short bursts) |
| Battery Voltage Range | 40–60V DC (48V nominal) |
| Output Voltage / Waveform | 220–240V AC pure sine wave (single-phase) |
| Max PV Input Power | 7800W (supports up to 15600W over-paneling in some listings) |
| Max PV Voltage (Voc) | 500V DC |
| MPPT Voltage Range | 150–425V DC |
| Number of MPPT Trackers | 2 |
| Max Solar Charge Current | 135–140A |
| Max AC Charge Current | High (from grid/generator) |
| Max Total Charge Current | Up to 135–140A (combined) |
| Efficiency | Max 97.6% |
| Transfer Time | 4–20ms (UPS mode) |
| Battery Types | Lead-acid or Lithium-ion (BMS self-adaption) |
| Operating Temperature | Wide range (suitable for tropical/coastal) |
| IP Rating | IP65 (waterproof/dustproof) |
| Communication | WiFi (stick logger), RS485/CAN |
| Warranty | 5 years typical (seller-dependent) |
