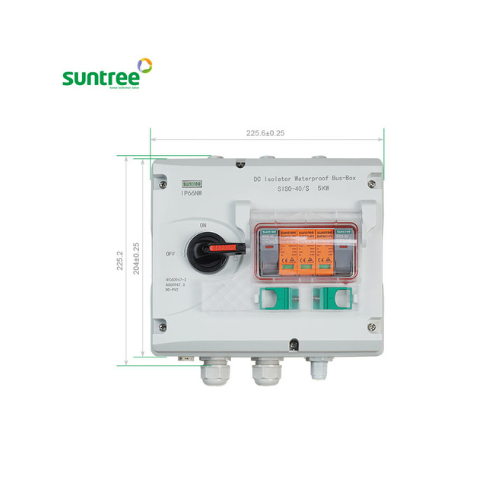

Suntree Dc Isolating Switch Waterproof Bus Box
Suntree Dc Isolating Switch Waterproof Bus Box - Image 2
In Stock

Suntree Dc Isolating Switch Waterproof Bus Box

Original price was: KSh 18,999.00.Current price is: KSh 12,999.00.

Specification Details
Rated Voltage (Ue) DC 1500V (some variants up to 1200V/1000V)
Rated Insulation Voltage (Ui) DC 1500V
Rated Current (Ie) 40A (and below; common options: 16A, 20A, 25A, 32A, 40A; up to 55A in select models)
Rated Short-Circuit Current (Icn) 3kA
Poles / Strings Up to 5 poles/strings (e.g., 2-string, 4-string configurations common)
Protection Degree IP66 (waterproof and dustproof)
Impact Resistance IK10
Mechanical Life 10,000+ operations
Electrical Life High cycle rating under load
Operating Temperature -40°C to +70°C (ideal for Kenya’s coastal climate)
Cable Connection Size 4mm²–6mm² photovoltaic cables
Enclosure Material UV-resistant, flame-retardant plastic
Standards IEC/EN60947-3, AS/NZS60947.3, GB/T14048, DC-PV2, etc.
Category: Tags: , , , , , , , , , , , , , , , , , Brand:

Description

Suntree Dc Isolating Switch Waterproof Bus Box

Key Features and Benefits

  • Waterproof and Durable: IP66 rating (fully dust-tight and protected against powerful water jets), UV-resistant enclosure, anti-collision build, and IK10 impact resistance for harsh outdoor environments.
  • Safety and Compliance: Provides quick isolation (short power shut-off time), polarity marked, and meets standards like IEC60947-3, AS60947-3, GB/T, and DC-PV2.
  • Easy Installation: Includes bus-bar for orderly wiring, transparent snap cover for visibility, cable glands for 4-6mm² PV cables, and options for MC4 connectors or direct wiring.
  • Applications: Ideal for solar array isolation, off-grid/hybrid systems, combiner box setups, or as a safety disconnect before inverters. Perfect for Kenya’s coastal humidity and salt exposure.
